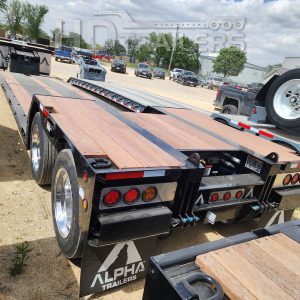

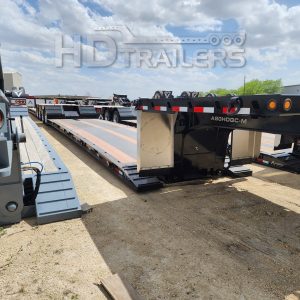

Alpha 60 Ton Hydraulic
Description
Gooseneck
- 12' 11" Hydraulic Detachable
- 51" 5th Wheel Height
- 15" & 41" King Pin
- 110" & 84" Swing Clearance
- 36" Flip Neck Extension
- 5 Position Ride Height
- Hydraulics run by Wet Kit
Main Deck
- 26' Length
- 16" Fabricated I-Beams
- 22" Loaded Deck Height
- 6" Ground Clearance
- 12" Cross Member Spacing (10" & 4")
- HD Swing Out Outriggers
- 2 Sets of HD Removable Flat Back Outriggers
- Chain Drops on 24" Centers
- 7 Bent d-Rings Per Side
- 5' Tool Box at Front with 2 Bent D-rings
- 6' Bucket Well at Rear with 2 Pr. Bent D-rings
- Top Flange Reinforcement
- Front Flip Load Ramps
- 1 3/4" Apitong Decking
Lighting
- 2 Tail Light Package with Stainless Steel Covers
- 2 Pr. Side Markers/1 Pr. Mid-Turn on Deck
- Grote Ultra Blue-Seal Wire Harness
Sub Frame
- 14' 1" Long
- 39" Loaded Deck Height
- 32 Degree Rear Transition
- Open Wheels with Bolsters
- Chain Slots in Each Bolster
- 2 Flat D-Rings at Rear
- Flag Holders
- 1 pair Stake Pockets in Tail Channel
- Frame Reinforcement for Two Axle Booster
Axles and Suspension
- 3 - 25,000 lb Axles
- 54 1/2" Axle Spacing
- Ridewell Suspension
- 16 1/2" x 7" Drum Brakes
- Spring Brakes on Two Axles
- Raise & Lower Valve
- Manual Ride Height Control
- Air Lift on 3rd Axle
- Liquid Filled Air Gauge
- 255/70R22.5 Tires
- Suspension Control in Bolster
