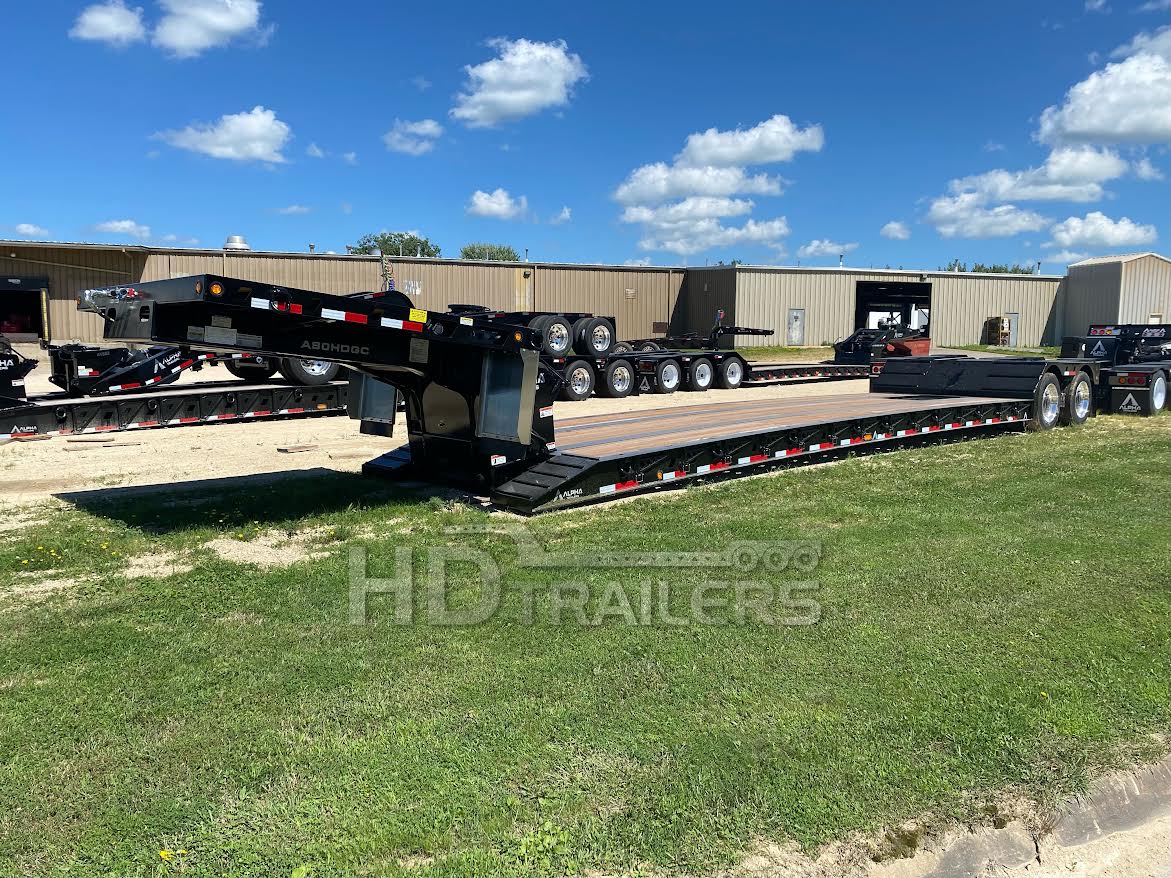

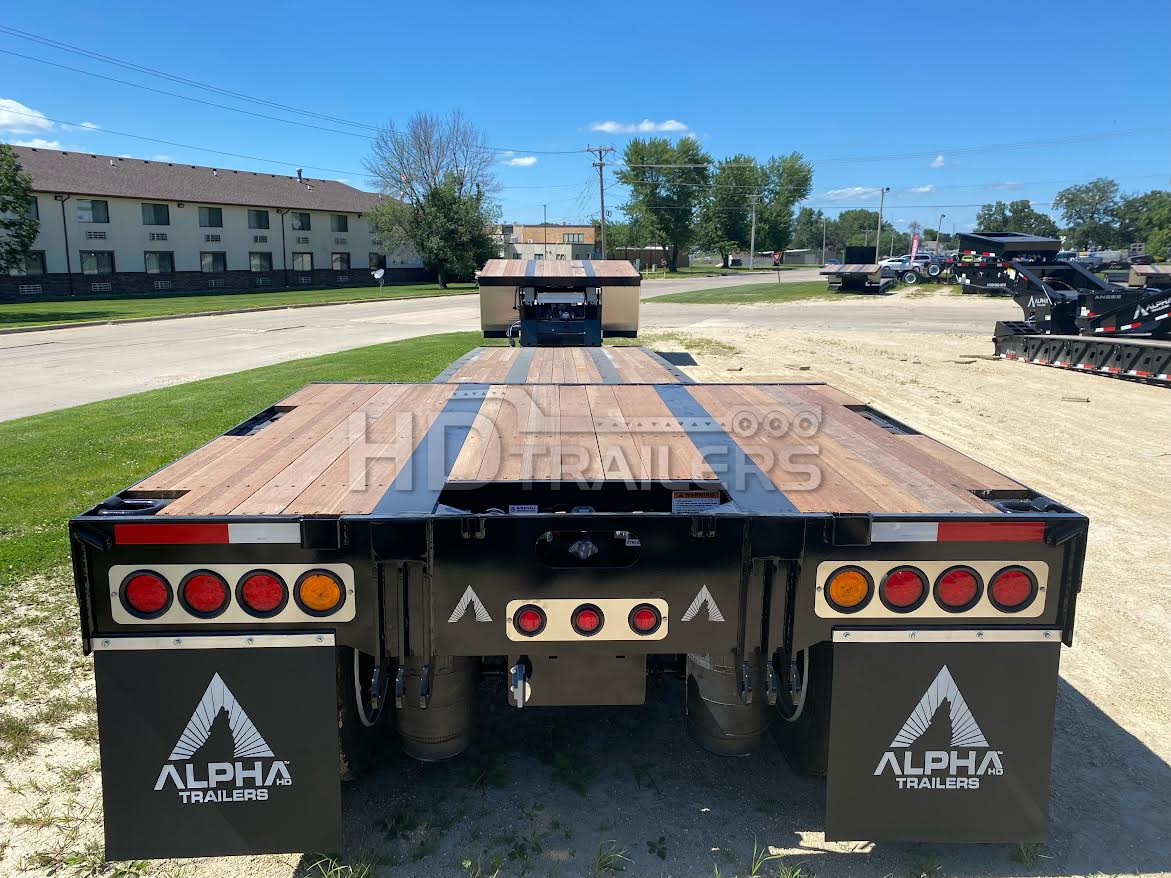

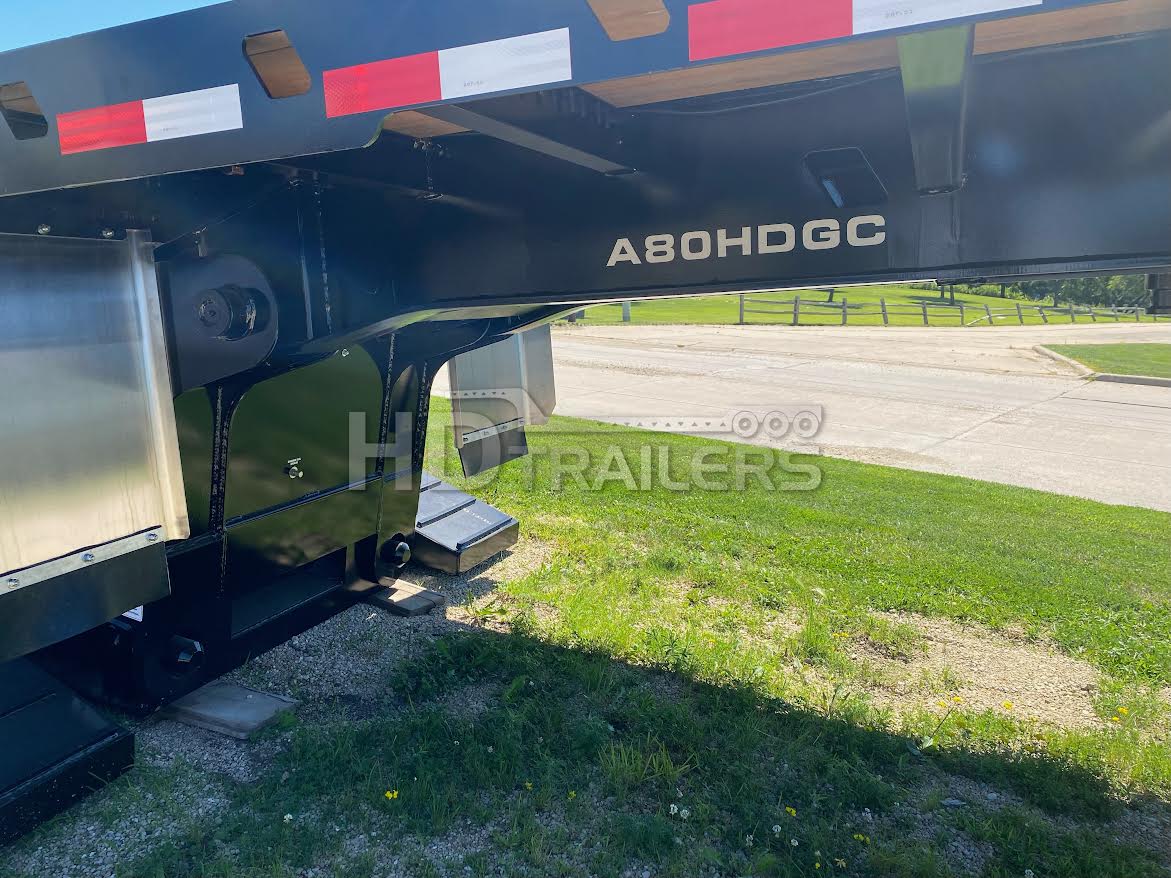

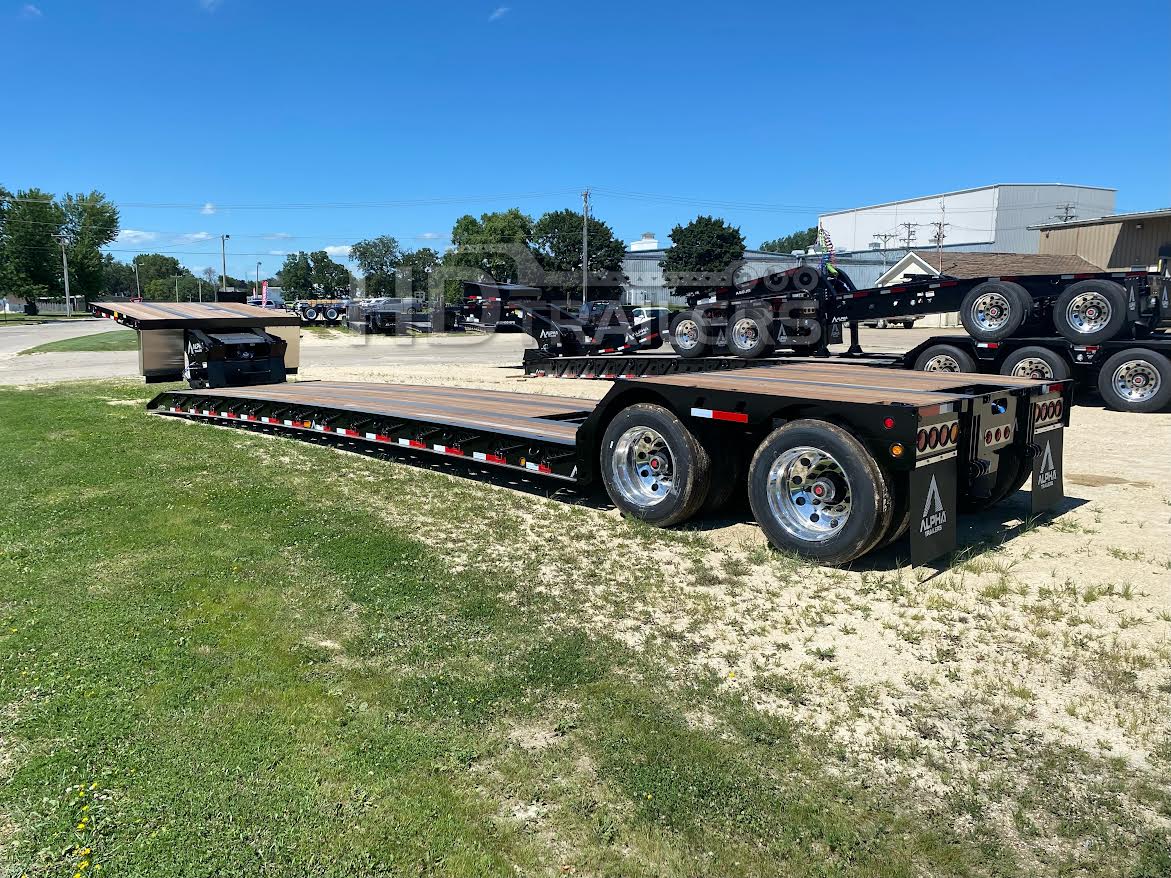

Alpha 40 Ton Hydraulic
Description
Gooseneck
- 10' 5" Hydraulic Detachable
- 49" 5th Wheel Height
- 80" Swing Clearance
- 5 Position Ride Height
- Full Width Platform
- Stainless Mudflaps
Main Deck
- 28' 7' Length
- 12" Fabricated I-Beams
- 18" Loaded Deck Height
- 6" Ground Clearance
- 6"/4 JRI Beam Cross Members ALT on 12" Centers
- Chain Slots on 24" Centers each sie
- 1 1/8" Apitong Flush Decking-Full Width
- Front Ramps tapered to 4" W/Traction Bars
- Removable Swingout Outriggers on 12" Centers
Lighting
- 2 Tail Light Package with Stainless Steel Covers
- 2 Pr. Side Markers/1 Pr. Mid-Turn on Deck
- Grote Ultra Blue-Seal Wire Harness
Sub Frame
- 9" Long
- 40" Loaded Deck Height
- Full Width Decking
- 1 Pair Flag Holders
- 1 pair Stake Pockets in Tail Channel
- Frame Reinforcement for Single Axle Stinger
Axles and Suspension
- 2 - 25,000 lb Axles
- 54" Axle Spacing
- Ridewell Suspension
- 16 1/2" x 7" Drum Brakes
- 452M ABS
- Spring & Brakes on Both Axles
- Raise & Lower Valve
- Manual Ride Height Control
- 255/70R22.5 Tires
- 8.25 x 22.5 Steel Wheels
